Simulators
The modules listed below contain simulators that can either be controlled from the DSC or the outside view, or both.
Control Valve
- Open and close the valve
- Rotate the valve
- Show a cross section of the valve
- Description
- Symbol
- Legend
- Simulator
Shell Tube Heat Exchanger
- Rotate the model
- Cross section
- Explode the model
- Description
- Symbol
- Legend
- Animations
- Simulator
Flow Between Tanks
- Simulator controlled from both DCS and outside view
- Demonstrates various control principles as experienced by the board operator and the field operator
- Operate controllers from the DCS view
- Explore the plant in the outside view
- Take instrument readings in the outside view
- Operate bypass valves in the outside view
- Classroom activities
Centrifugal Pumps
- Take field readings, operate equipment, and simulate communications with the board operator to complete a specific task
- Simulations for pump startup, pump shutdown, swapping pumps, and putting a pump in standby
- Classroom activities

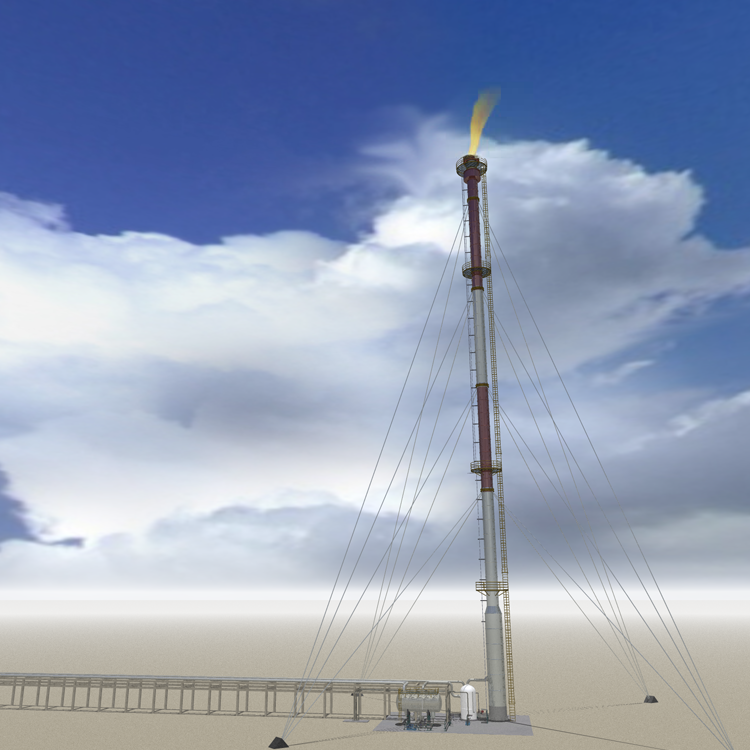

Vent and Flare System
- Simulator controlled from both DCS and outside view
- Operate controllers from the DCS view
- View the flame at the flare
- Take instrument readings in the outside view
- Operate valves in the outside view
- Explore flame patterns by changing switches on a simple control panel
- Classroom activities
